ROTARY COMPRESOR
Compact Efficiency. Quiet Performance.
A solution designed for air conditioner and heat pump applications.
Constant Speed
High-efficiency motors enable constant-speed compressors to deliver faster cooling while minimizing operational noise.
Variable Speed
Digital inverter compressors (variable) precisely regulate power and operating speed to adapt to temperature changers, delivering efficient performance with low noise and minimal vibration.

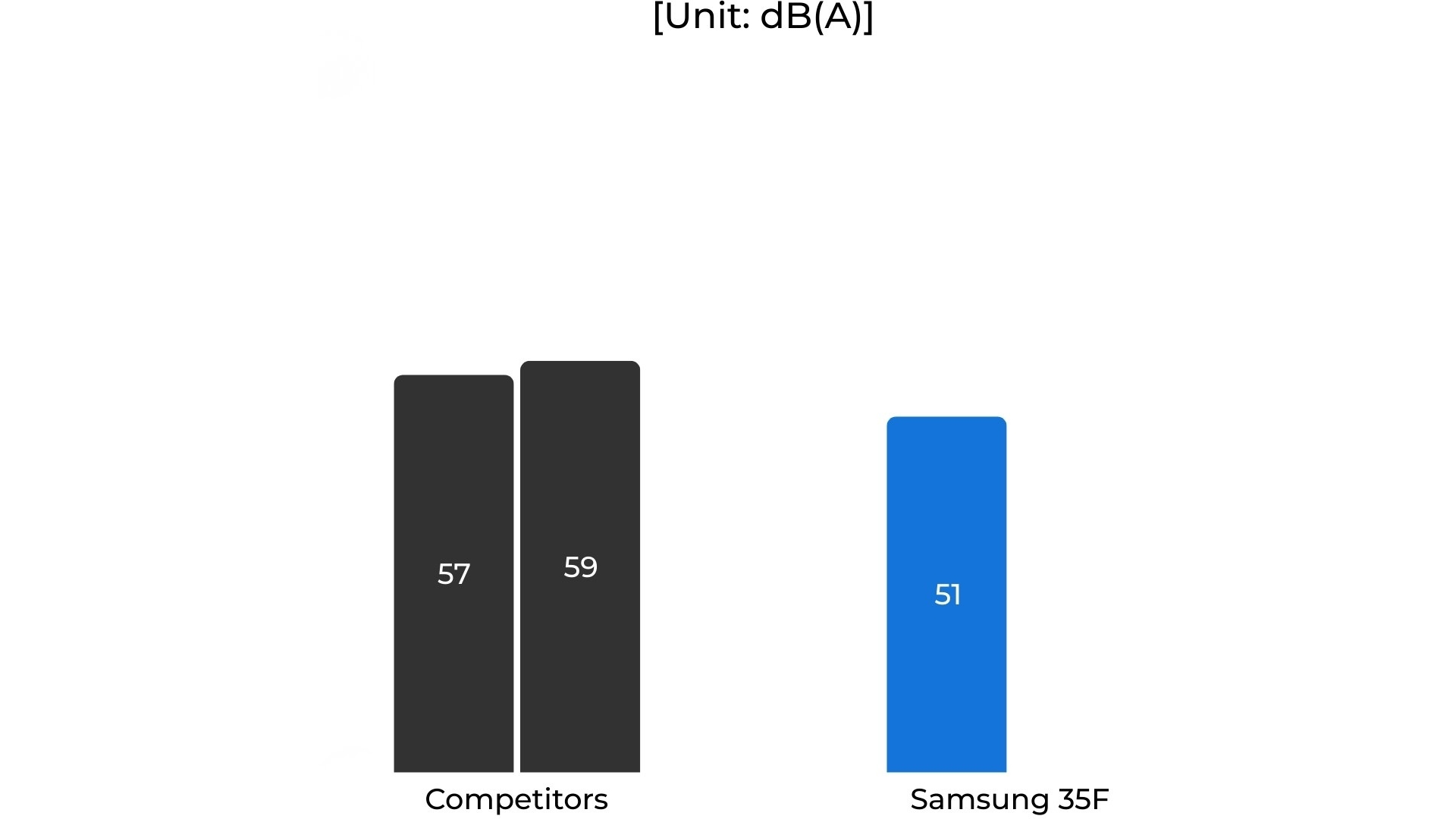

Noise Comparison
15% greater noise reduction (6~8dBA↓)
Minimized acoustic insulation usage to reduce costs.

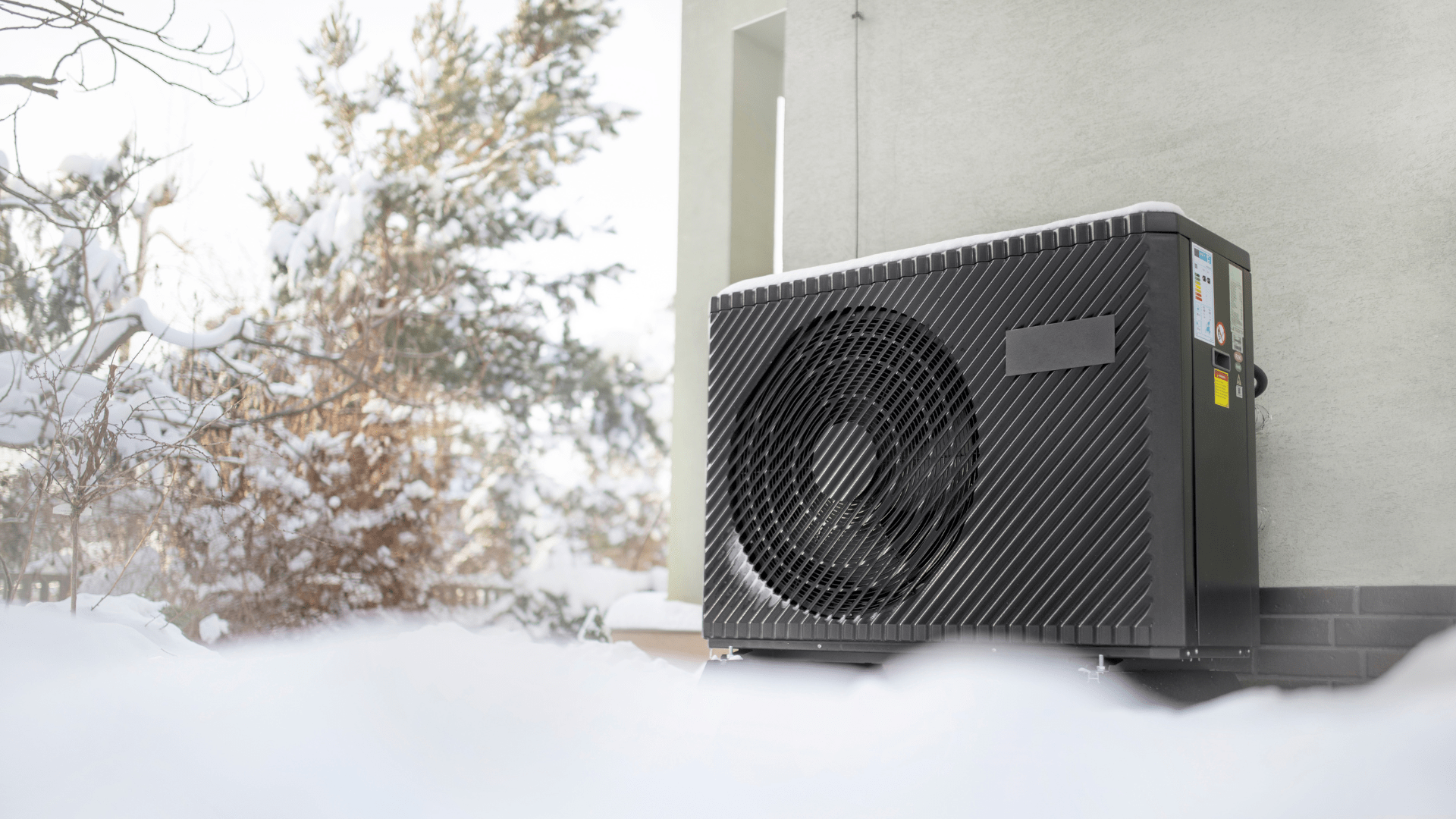

Engineered for Subzero Performance
Built to perform in outdoor temperatures down to –30°C.
Condenser operates up to 82°C, maintaining 73.5°C at –15°C ambient.
High Efficiency
Improved partial-load efficiency
Reduced stator radial force
Wide operation range: 12 ~ 120rps
Reduced Vibration
Rigid design resistant to deformation
Smoother torque output
Eco-efficient
Continuous rotary motion reduces energy losses
Robust Pump Design
Improved mechanical efficiency
Decrease loss (including inner leakage)
Precision processing
Twin Rolling Piston Type
Rolling pistons balance compression forces
Stable operation across varying loads
Low Noise Design
Reduced peak noise (Muffler)
Applications
Unitary System
Heat Pump Clothes Dryer
Heat Pump Water Heater
Water Heating
Variable Speed
Fixed Speed
| Model | Refrigerant | Type | Power Source | Displacement [cc] | Capacity | Input [W] | Efficiency | Test Condition | ||
| Btu/h | W | EER | COP | |||||||
| UX9CT1030J | R134A | Fixed Speed | 1Ø, 50Hz, 220-240V | 7.3 | 2,900 | 850 | 312 | 9.3 | 2.72 | ASH |
| UX9AK2037J | 9.0 | 3,650 | 1,070 | 360 | 10.1 | 2.97 | ||||
| UX9BJ2042J | 10.2 | 4,260 | 1,249 | 418 | 10.2 | 2.99 | ||||
| UX9CT1035I | 1Ø, 60Hz, 203-230V | 7.3 | 3,550 | 1,041 | 351 | 10.1 | 2.96 | |||
| UX9AK2040I | 8.1 | 4,000 | 1,172 | 385 | 10.4 | 3.05 | ||||
| UX9CK5034F | Inverter | DC Inverter | 7.3 | 3,480 | 1,020 | 290 | 12.0 | 3.52 | ||
| UX9AR3044F | 9.0 | 4,340 | 1,272 | 368 | 11.8 | 3.46 | ||||
| UX9AD5044F | 9.0 | 4,340 | 1,272 | 356 | 12.2 | 3.57 | ||||
| UX9AR5044F | 9.0 | 4,340 | 1,272 | 356 | 12.2 | 3.57 | ||||
| UX9BR5055F | 11.3 | 5,400 | 1,583 | 439 | 12.3 | 3.61 | ||||
| UX9BC3055F | 11.3 | 5,400 | 1,583 | 450 | 12.0 | 3.52 | ||||
| UF9HA2036J | R290 | Fixed Speed | 1Ø, 50Hz, 220-240V | 7.3 | 3,550 | 1,040 | 374 | 9.5 | 2.78 | |
| UF9HA3036J | 7.3 | 3,550 | 1,040 | 351 | 10.1 | 2.96 | ||||
| UF9HA3040J | 8.1 | 3,900 | 1,143 | 386 | 10.1 | 3.04 | ||||
| UF9HB2040J | 8.1 | 3,900 | 1,143 | 406 | 9.6 | 2.89 | ||||
| UF9HA5044F | Inverter | DC Inverter | 7.3 | 4,550 | 1,333 | 386 | 11.8 | 3.45 | ||
| Type | Model | Displacement | Capacity | Input | Efficiency | Test Condition | |||
| Btu/h | W | EER | COP | ||||||
| 39F (Single) | UF9HA5044F | 7.30 | 4,550 | 1,333 | 386 | 11.80 | 3.46 | ASH | |
| 39F (Twin) | UF9HF3110F | 17.6 | 11,000 | 3,224 | 902 | 12.20 | 3.57 | ||
| 48F | UF8HA5155F | 25.2 | 16,000 | 4,689 | 1,333 | 12.00 | 3.52 | ||
| UF8HA5180F | 30.0 | 19,000 | 5,569 | 1,551 | 12.25 | 3.59 | |||
| 55F | UF5HA5260F | 43.0 | 27,500 | 8,060 | 2,236 | 12.30 | 3.6 | ||
| UF5HA5300F | 49.4 | 31,500 | 9,232 | 2,560 | 12.30 | 3.61 | |||
| Model | Displacement [cc] | Rated Voltage | Refrigerant | Cooling Capacity | Input [W] | Efficiency | Test Condition | ||
| Btu/h | W | EER | COP | ||||||
| UB1TD1077F | 7.7 | 1Ø, 220V | R32 | 8,200 | 2,403 | 788 | 10.4 | 3.05 | ARI |
| R410A | 7,950 | 2,330 | 743 | 10.7 | 3.14 | ASH | |||
| UB1AR1090F | 9.0 | 1Ø, 220V | R32 | 9,720 | 2,849 | 926 | 10.5 | 3.08 | ARI |
| R410A | 9,550 | 2,799 | 876 | 10.9 | 3.19 | ASH | |||
| UB1AR5090F | 9.0 | 1Ø, 220V | R32 | 9,720 | 2,849 | 900 | 10.8 | 3.17 | ARI |
| R410A | 9,550 | 2,799 | 845 | 11.3 | 3.31 | ASH | |||
| UB1TC5102F | 10.2 | 1Ø, 220V | R32 | 10,600 | 3,107 | 1,000 | 10.6 | 3.11 | ARI |
| R410A | 10,400 | 3,048 | 959 | 10.85 | 3.18 | ASH | |||
| UB1TF8102F | 10.2 | 1Ø, 220V | R32 | 10,600 | 3,107 | 946 | 11.2 | 3.28 | ARI |
| R410A | 10,400 | 3,048 | 1468 | 11.5 | 3.37 | ASH | |||
| UB1TC5146F | 14.6 | 1Ø, 220V | R32 | 16,000 | 4,689 | 1,495 | 10.7 | 3.14 | ARI |
| R410A | 15,500 | 4,543 | 1,409 | 11 | 3.22 | ASH | |||
| UB9TA8150F | 15.0 | 1Ø, 220V | R32 | 16,900 | 4,953 | 1,496 | 11.3 | 3.31 | ARI |
| R410A | 16,400 | 4,807 | 1,414 | 11.6 | 3.4 | ASH | |||
| UB9TA9180F | 17.6 | 1Ø, 220V | R32 | 19,900 | 5,832 | 1,777 | 11.2 | 3.28 | ARI |
| R410A | 19,300 | 5,657 | 1,678 | 11.5 | 3.37 | ASH | |||
| UB8TA8265F | 25.2 | 1Ø, 220V | R32 | 28,800 | 8,441 | 2,548 | 11.3 | 3.31 | ARI |
| R410A | 28,000 | 8,206 | 2,435 | 11.5 | 3.37 | ASH | |||
| UB8TN8300F | 30.0 | 1Ø, 220V | R32 | 32,880 | 9,637 | 2,911 | 11.3 | 3.31 | ARI |
| R410A | 31,300 | 9,174 | 2,698 | 11.6 | 3.4 | ASH | |||
| UB5TN5450F | 43.0 | 3Ø, 380V | R32 | 47,600 | 13,951 | 4,250 | 11.2 | 3.28 | ARI |
| R410A | 46,800 | 13,716 | 4,216 | 11.1 | 3.25 | ASH | |||
| UB5TD8450F | 43.0 | 1Ø, 220V & 3Ø, 380V | R32 | 49,800 | 14,596 | 4,256 | 11.7 | 3.43 | ARI |
| R410A | 47,400 | 13,892 | 4,051 | 11.7 | 3.43 | ASH | |||
| UB8TF5265F | 25.2 | 1Ø, 220V | R32 | 28,600 | 8,382 | 2,531 | 11.3 | 3.31 | ARI |
| R410A | 27,800 | 8,148 | 2,460 | 11.3 | 3.31 | ASH | |||
| UB8TF8265F | 25.2 | 1Ø, 220V | R32 | 28,800 | 8,441 | 2,441 | 11.8 | 3.46 | ARI |
| R410A | 28,000 | 8,206 | 2,373 | 11.8 | 3.46 | ASH | |||
| UB8TF5300F | 30.0 | 1Ø, 220V & 3Ø, 380V | R32 | 33,700 | 9,877 | 2,982 | 11.3 | 3.31 | ARI |
| R410A | 31,900 | 9,349 | 2,823 | 11.3 | 3.31 | ASH | |||
| UB8TF8300F | 30.0 | 1Ø, 220V & 3Ø, 380V | R32 | 34,000 | 9,965 | 2,906 | 11.7 | 3.43 | ARI |
| R410A | 32,200 | 9,437 | 2,752 | 11.7 | 3.43 | ASH | |||
| UB5TD5450F | 43.0 | 1Ø, 220V & 3Ø, 380V | R32 | 49,400 | 14,478 | 4,372 | 11.3 | 3.31 | ARI |
| R410A | 47,000 | 13,775 | 4,159 | 11.3 | 3.31 | ASH | |||
| Higher Efficiency by 2~6% Model compared to the legacy Rotary compressor model | |||||||||
| Dual refrigerant application of R32 & R410A | |||||||||
| Model | Displacement [cc] | Cooling Capacity | Input [W] | Efficiency | Test Condition | ||
| [Btu/h] | [W] | [EER] | [COP] | ||||
| UG5TM5520F | 49.4 | 52,700 | 15,445 | 4,705 | 11.2 | 3.28 | ASH |
| UG5TK8520F | 49.4 | 52,800 | 15,475 | 4,632 | 11.4 | 3.34 | ASH |
| UG8TT3360F | 36.0 | 39,000 | 11,430 | 3,450 | 11.3 | 3.31 | ASH |
| UG5TK1450F | 43.0 | 45,500 | 13,335 | 4,099 | 11.1 | 3.25 | ASH |
| Frame | Class | Model | Displacement [cc] | Capacity | Input [W] | Efficiency | ||
| Btu/h | W | EER | COP | |||||
| 39F | 2T | UF9LB3180F | 17.6 | 17,700 | 5,188 | 1,595 | 11.1 | 3.25 |
| 48F | 3T | UF8LB3265F | 25.2 | 25,700 | 7,532 | 2,336 | 11.0 | 3.22 |
| 3~4T | UF8LB3300F | 30 | 30,000 | 8,792 | 2,727 | 11.0 | 3.22 | |
| 4T | UF8LB3360F | 36 | 36,400 | 10,668 | 3,309 | 11.0 | 3.22 | |
| 55F | 4~5T | UF5LB3450F | 43 | 43,700 | 12,808 | 3,937 | 11.1 | 3.25 |
| 5T | UF5LB3520F | 49.4 | 50,200 | 14,713 | 4,523 | 11.1 | 3.25 | |
| Testing Condition: ARI | ||||||||
| Condensing Temperature ..................... 54.4 ℃ (130℉ ) | ||||||||
| Evaporating Temperature ..................... 7.2 ℃ ( 45℉ ) | ||||||||
| Return Gas Temperature ..................... 18.3 ℃ ( 65℉ ) | ||||||||
| Liquid Temperature ............................... 46.1 ℃ (115℉ ) | ||||||||
| Ambient Temperature ........................... 35.0 ℃ ( 95℉ ) | ||||||||
